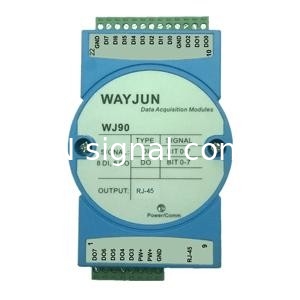

WAYJUN Eight channels DI/DO Ethernet switch to RJ45，Modbus TCP blue switch digital to MODBUS TCP DIN35
Product Details:
|
Detailed Product Description
| Mounting: | DIN35 | Color: | Blue |
|---|---|---|---|
| Channels: | Eight |
Keywords: switch digital to MODBUS TCP | switch to Web
Product Part No.:
WJ90 - RJ45
Communication Interface
RJ45: RJ-45 output network interface
WJ90-RJ45 General Parameters:
(typical @ +25 ℃, Vs to 24VDC)
Input type: digital signal input, 8 channels (DI0~DI7)
Low level: input<1V
High level: input 3.5~30V
Input Resistance: 30KΩ
Output type: open collector output, voltage 0~30V, maximum load current 30mA, 8-CH (DO0~DO7)
Communication: MODBUS TCP communication protocol
Web: support web to access module, support web setting module parameters
Interface: RJ-45 network interface
Power Supply: +8 ~ 32VDC wide range power supply, internal anti-reverse and over-voltage protection circuit
Power Loss: less than 1W
Operating Temperature: - 45 ~ +80 ℃
Humidity: 10 ~ 90% (no condensation)
Storage Temperature: - 45 ~ +80 ℃
Storage Humidity: 10 ~ 95% (no condensation)
Isolation Voltage: Non-isolated
Dimensions: 120 mm x 70 mm x 43mm
Features:
>> Eight digital inputs, eight digital output Industrial Ethernet I/O
>> Supports Modbus TCP protocol
>> Built-in Web feature, you can query level state by the web
>> Switch output state can be set via the web
>> No signal isolation between input, output and power supply
>> Wide power supply range: 8 ~ 32VDC
>> High reliability, easy programming, easy application
>> Standard DIN35 rail mounting ,small size
>> Users can set the module IP address and other parameters on the page
>> Web login can be set account and password
>> Dimensions: 120 x 70 x 43mm
| PIN | Name | Function | PIN | Name | Function |
| 1 | DO7 | Channel 7 switch signal output | 12 | DO2 | Channel 2 switch signal output |
| 2 | DO6 | Channel 6 switch signal output | 13 | GND | Power supply-,signal common ground |
| 3 | DO5 | Channel 5 switch signal output | 14 | DI0 | Channel 0 switch signal input |
| 4 | DO4 | Channel 4 switch signal output | 15 | DI1 | Channel 1 switch signal input |
| 5 | DO3 | Channel 3 switch signal output | 16 | DI2 | Channel 2 switch signal input |
| 6 | PW+ | Power supply + | 17 | DI3 | Channel 3 switch signal input |
| 7 | PW+ | Power supply + | 18 | DI4 | Channel 4 switch signal input |
| 8 | GND | Power supply -,signal common ground | 19 | DI5 | Channel 5 switch signal input |
| 9 | RJ-45 | Network interface | 20 | DI6 | Channel 6 switch signal input |
| 10 | DO0 | Channel 0 switch signal output | 21 | DI7 | Channel 7 switch signal input |
| 11 | DO1 | Channel 1 switch signal output | 22 | GND | Power supply-,signal common ground |

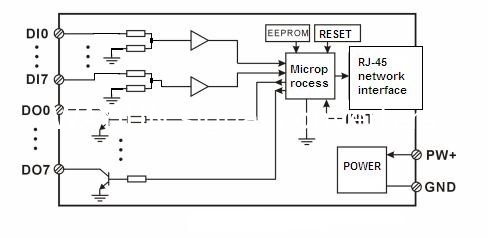

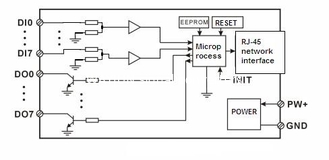

Product Overview:
WAYJUN WJ90-RJ45 is a Internet of Things and Industrial Ethernet acquisition module, to achieve the formation transparent between sensor and network. WJ90-RJ45 can send sensor data exchange to network, or send the data forwards network to the sensor.
Datasheet Download :http://www.wayjun.net/Datasheet/Signal/WJ90-RJ45%20EN.pdf
