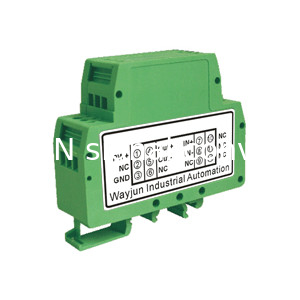

220VAC to DC Converter 5W, 85-265VAC wide range input WAYJUN 2500V isolation DIN35
Product Details:
|
Detailed Product Description
| Mounting: | DIN35 | Color: | Green |
|---|---|---|---|
| Output Power: | 5w |
Features:
>>Wide range input :85-265VAC (50/60Hz)
>>Conversion Efficiency: 80%
>>Output Power: 5W
>>Switching frequency: 60KHz typ
>>Overcurrent, short circuit, over-temperature protection, automatic recovery
>>Input/Output :2500V
>>Standard DIN35 rail mounting
Application:
>>Powered analog signal isolator
>>Isolated 4-20mA signal power
>>Signal isolation and conversion of industrial site
>>Two-wire 4-20mA signal isolation power
>>Powered instrumentation
Products Listing:
DIN11 POWER5- P□ - P□
| Input Voltage |
Output Voltage
|
||
| voltage |
code
|
voltage
|
code
|
|
85-265VAC
|
P5
|
24VDC
|
P1
|
|
15VDC
|
P4
|
||
|
12VDC
|
P2
|
||
|
5VDC
|
P3
|
||
|
|
|
||
Samples:
1: Input:220VAC Output:24VDC Part No.: DIN11 POWER5-P5-P1(P5:220VAC)
2: Input:220VAC Output:12VDC Part No.: DIN11 POWER5-P5-P2(P5:220VAC)
3: Input:110VAC Output:24VDC Part No.: DIN11 POWER5-P5-P1(P5:110VAC)
|
Typical products list
|
||||||
| TYPE |
Input voltage range
|
(Output voltage / current)
|
Max. capacitive load
|
Ripple and Noise:20MHz
|
Eff.@full load
|
|
| Vo(V) |
Io(m A)
|
u F
|
mVp-p
|
%
|
||
| DIN11 POWER5-P5-P3 |
85~265VAC
|
+5.0 V
|
1000 m A
|
1000
|
80
|
76%
|
| DIN11 POWER5-P5-P2 |
+12.0 V
|
420 m A
|
470
|
120
|
80%
|
|
| DIN11 POWER5-P5-P1 |
+24.0 V
|
210m A
|
220
|
120
|
80%
|
|
Please inform us the part No. after you order.
More details,please check: http://www.wayjun.net/index.php?main_page=product_info&cPath=4&products_id=68
